Multiple layouts 2

  • Usage

    1. Listing layout

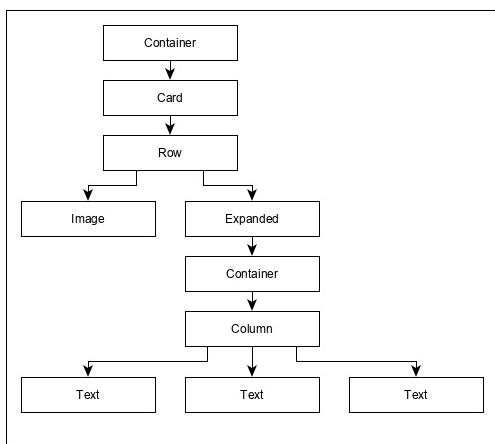

    hierarchy of the widget

    2. Define ProductBox


                      class ProductBox extends StatelessWidget {
                            ProductBox({Key key, this.name, this.description, this.price, this.image})
                                : super(key: key);
                            final String name;
                            final String description;
                            final int price;
                            final String image;

                            Widget build(BuildContext context) {
                                return Container(
                                  padding: EdgeInsets.all(2), height: 120,  child: Card(
                                      child: Row(
                                        mainAxisAlignment: MainAxisAlignment.spaceEvenly, children: <Widget>[
                                            Image.asset("assets/appimages/" +image), Expanded(
                                              child: Container(
                                                  padding: EdgeInsets.all(5), child: Column(
                                                    mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                                                        children: <Widget>[

                                                        Text(this.name, style: TextStyle(fontWeight:
                                                          FontWeight.bold)), Text(this.description),
                                                        Text("Price: " + this.price.toString()),
                                                    ],
                                                  )
                                              )
                                            )
                                        ]
                                      )
                                  )
                                );
                            }
                          }



    3. Use the ProductBox widget in the MyHomePage widget


                          class MyHomePage extends StatelessWidget {
       MyHomePage({Key key, this.title}) : super(key: key);
       final String title;

       @override
       Widget build(BuildContext context) {
          return Scaffold(
             appBar: AppBar(title:Text("Product Listing")),
             body: ListView(
                shrinkWrap: true, padding: const EdgeInsets.fromLTRB(2.0, 10.0, 2.0, 10.0),
                children: <Widget> [
                   ProductBox(
                      name: "iPhone",
                      description: "iPhone is the stylist phone ever",
                      price: 1000,
                      image: "iphone.png"
                   ),
                   ProductBox(
                      name: "Pixel",
                      description: "Pixel is the most featureful phone ever",
                      price: 800,
                      image: "pixel.png"
                   ),
                   ProductBox(
                      name: "Laptop",
                      description: "Laptop is most productive development tool",
                      price: 2000,
                      image: "laptop.png"
                   ),
                   ProductBox(
                      name: "Tablet",
                      description: "Tablet is the most useful device ever for meeting",
                      price: 1500,
                      image: "tablet.png"
                   ),
                   ProductBox(
                      name: "Pendrive",
                      description: "Pendrive is useful storage medium",
                      price: 100,
                      image: "pendrive.png"
                   ),
                   ProductBox(
                      name: "Floppy Drive",
                      description: "Floppy drive is useful rescue storage medium",
                      price: 20,
                      image: "floppy.png"
                   ),
                ],
             )
          );
       }
    }


    Complete code


    import 'package:flutter/material.dart';
    void main() => runApp(MyApp());

    class MyApp extends StatelessWidget {
       // This widget is the root of your application.
       @override
       Widget build(BuildContext context) {
          return MaterialApp(
             title: 'Flutter Demo', theme: ThemeData(
                primarySwatch: Colors.blue,
             ),
             home: MyHomePage(title: 'Product layout demo home page'),
          );
       }
    }
    class MyHomePage extends StatelessWidget {
       MyHomePage({Key key, this.title}) : super(key: key);
       final String title;

       @override
       Widget build(BuildContext context) {
          return Scaffold(
             appBar: AppBar(title: Text("Product Listing")),
             body: ListView(
                shrinkWrap: true,
                padding: const EdgeInsets.fromLTRB(2.0, 10.0, 2.0, 10.0),
                children: <Widget>[
                   ProductBox(
                      name: "iPhone",
                      description: "iPhone is the stylist phone ever",
                      price: 1000,
                      image: "iphone.png"
                   ),
                   ProductBox(
                      name: "Pixel",
                      description: "Pixel is the most featureful phone ever",
                      price: 800,
                      image: "pixel.png"
                   ),
                   ProductBox(
                      name: "Laptop",
                      description: "Laptop is most productive development tool",
                      price: 2000,
                      image: "laptop.png"
                   ),
                   ProductBox(
                      name: "Tablet",
                      description: "Tablet is the most useful device ever for meeting",
                      price: 1500,
                      image: "tablet.png"
                   ),
                   ProductBox(
                      name: "Pendrive",
                      description: "Pendrive is useful storage medium",
                      price: 100,
                      image: "pendrive.png"
                   ),
                   ProductBox(
                      name: "Floppy Drive",
                      description: "Floppy drive is useful rescue storage medium",
                      price: 20,
                      image: "floppy.png"
                   ),
                ],
             )
          );
       }
    }
    class ProductBox extends StatelessWidget {
       ProductBox({Key key, this.name, this.description, this.price, this.image}) :
          super(key: key);
       final String name;
       final String description;
       final int price;
       final String image;

       Widget build(BuildContext context) {
          return Container(
             padding: EdgeInsets.all(2),
             height: 120,
             child: Card(
                child: Row(
                   mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                   children: <Widget>[
                      Image.asset("assets/appimages/" + image),
                      Expanded(
                         child: Container(
                            padding: EdgeInsets.all(5),
                            child: Column(
                               mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                               children: <Widget>[
                                  Text(
                                     this.name, style: TextStyle(
                                        fontWeight: FontWeight.bold
                                     )
                                  ),
                                  Text(this.description), Text(
                                     "Price: " + this.price.toString()
                                  ),
                               ],
                            )
                         )
                      )
                   ]
                )
             )
          );
       }
    }
